Make: Beneteau
Model: 393 Oceanis Clipper Year: 2005
Designer: Berret / Racoupeau
Length: 39' 3'' (11.94m)
Keel type: Bulb with no wings
Draft: 6' 2" (1.9m)
Displacement: 17116 lbs. (7780kg)
Ballast: 5357 lbs. (2429kg)
Materials: Hull - Fiberglass, Deck - Cored
Superstructure - Fiberglass, Keel - Iron.
Colors: Hull - White, Deck - White, Bottom - Black
Berths: 8 pcs
Private cabins: 3 pcs
Head room: 6 ft & 7 inches

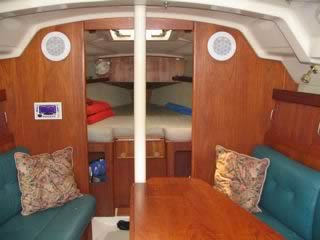

Headliner in Cabin: Fiberglass with Teak Accents
Upholstery: Suede-Leather in Saloon (Light Beige, 2010)
Teak and Holly Cabin Sole: Beneteau Laminate Floor

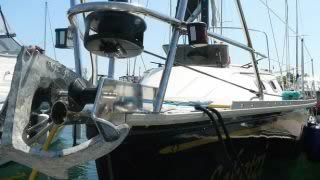

Anchor Type: 2 x Delta 35 lbs. (16 kg)
Anchor Chain: 200 ft., Rode 50 ft.
Windlass: Electric, Lofran Cayman 88 1000W 12V, Wire Remote Controlled
Batteries: House 2 pcs 220A/h, 1 pcs Engine Start 70A/h
Cabin Lights: Flush-mount Spotlight, Reading Spotlight
Dock lines: 8 pcs Fenders: 4 pcs
Hanging Lockers: 3 pcs
Hatches: 5 pcs Lewmar Medium Profile
Port Lights: 6 pcs Lewmar Opening Standard, 4 pcs Lewmar Fixed Atlantic
Plumbing Hoses: Marine (2005)
Heads: 2 pcs Jabsco, Manual
Holding Tanks: 2 gravity discharge / pump out holding tanks
Size: 2 x 24 gals. (2 x 90 L), PVC Plastic (steam-cleaned 2008)
Bilge Pumps: 2 x Jabsco with Pump-guard Strainers, automatic float switch
1 x Manual Cockpit Mount
Fresh Water Tanks: 2 x PVC Plastic 66 gals. (250 L) (Total: 119 gals. / 450 L)
(steam-cleaned 2010)
Fresh Water Usage Meter: Yes, Electronic Display
Hot Water Tank: Nautical Boiler 1200 W 110 V/220 V, 10.6 gal (40 L)
Stainless Steel, Engine Coolant Feed
Shore Power 110 V/220 V
Pressure Water: Shurflo Pump, Pump-guard Strainer
Sea Cocks: 10 pcs (checked / cleaned 2010)
Showers: Hot Water, 2 pcs Stalls, 1 pcs Swim Platform
Shower Drains: 2 pcs Whale Gulper 221 Pumps
Sinks: 1 Galley Double Compartment, 2 x Head Single Compartment
Stove: 2 burners, Force 10 Propane Marine, Swivel Mount
Propane Tanks: Cockpit Compartment, 2 x 10 lbs. Aluminum (5 kg)
12V Solenoid / Regulator

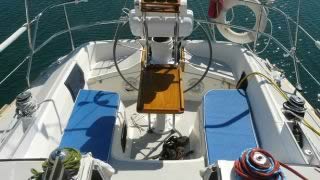

Steering Wheel: 36 inch (0.91 m), leather cover, swing
Cradle: Steel, Marine Cradle Shop Mississauga

SAILS AND RIGGING
Mast / Boom: Anodized Aluminum
Clearance Height: 51.35 ft (15.65 m)
Spreaders: 2 sets
Main: Full Batten (2007) , Jib Genoa: 140% (2010), 150% (2005)

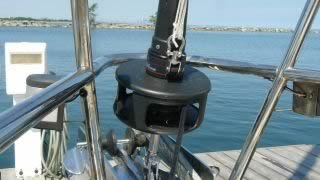

Genoa Furling: Yes
Rigid Boom-Vang: Yes
Traveler: Yes, Cockpit controlled
Back stays Adjustment: 2 x Turnbuckles
Toe Rails: Anodized Aluminum
Stanchions: 8 pcs Stainless Steel
Life Lines: Double, Stainless Steel
Lifeline gates: 2 pcs Stainless Steel
Winches: Lewmar 4 pcs Self Tailing, 2-speed
Mooring Cleats: 6 pcs, Anodized Aluminum
Winch Handles: 3 pcs, Locking
Standing Wire Rigging: (2005)
Running Rigging: Spinnaker Halyard, Halyard Block (2010)
Sail Cover : Sleeve Drop (Quick Cover)
Lazy Jacks: Yes, in to Sleeve Cover

RIG DIMENSIONS
I: 46.08' / 14.05 m, P: 40.33' / 12.29 m, J: 14.50' / 4.42 m, E: 15.08' / 4.60 m
SA(Fore.): 334.08 ft2 / 31.04 m2, SA(Main): 304.09 ft2 / 28.25 m2
Total(calc.)SA: 638.17 ft2 / 59.29 m2
SA/Displ: 15.41, Est. Forestay Len.: 48.31' / 14.72 m

OTHER EQUIPMENT:

Bow Pulpit Rollers: 2 pcs, Marine Grate Rubber
Cabin Curtains: Yes
Hatches Roll Up Blinds: Yes

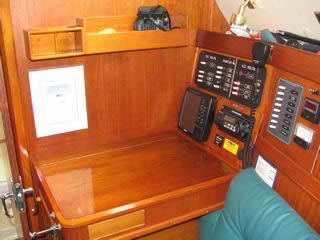

Chart Table, Saloon Table: Yes, Teak
Cockpit Table: Folding, Fiberglass
Cockpit Cushions: 6 pcs, Folding, Blue Color
Clock, Barometer: Yes Radar Reflector: Yes
Refrigerator / Freezer: Water Cooled
Bug Screens: 6 pcs Lewmar Port lights
Shore Power Service: 1 pcs, 50 Amp, Cord: 50 Ft
Spreader Lights, Anchor Light, Steaming Light: Yes
Navigation Lights: Hull, Bow Pulpit Mounted
Compass: Plastimo Olympic 135
Grounding Cables (Lightning protection): Yes
Dodger: Stainless Steel Frame, (New 2010)
Bimini: Stainless Steel Frame, re-stitched, New Zippers
Water Resistant Silicone Treatment (2010)
Swim Platform, Stern Rail, Swim Ladder: Yes, Stainless Steel
Marine Safety Equipment: Flares (2010), 8 Life jackets, 1 Life Ring Buoy
Plastimo Transocean+ Life Raft (8 persons), 8 x Life Harness
Man Overboard Buoy Deployment Marker
Fire Safety Equipment: 3 pcs Fire Extinguishers, 2 pcs Fire Blankets
Emergency Kit: Yes
Horn: Yes

HULL
Hull: Laminated G.R.P. with Internal Fiberglass Grid Hull Liner
Waxed, Original Beneteau Original Gel-coat

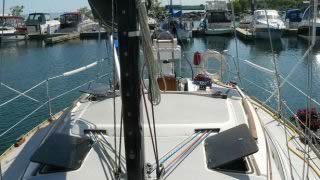

Deck: Waxed, Non-Skid, Original Beneteau Gel-coat
Bottom: Micron 66 Bottom Paint 2 coats (2011)
Interior / Exterior: Teak Finish

ELECTRONICS
Autopilot: Raymarine ST6001+ Smart-pilot Controller
12V Liner Drive Type 1, Digital Display, Compass Sensor
Log / Speed: Raymarine ST60 Tridata (Cockpit Navigation Panel Flush Mount)
Wind: Tacktick Micronet T101 Wireless Multi Wind System
T112 (mn 100) Electronic / Analog Display (Cockpit Navigation Panel Flush Mount) T120 Wind Sensor (Mast Top Mounted)

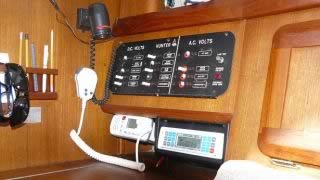

VHF Receiver: IC - M302 VHF Marine Transceiver, (2008) (Cabin)
VHF Antenna: Shakespeare 5215-C-X. 3' VHF Antenna (Mast Top Mounted, 2010)
VHF RG-213 Coaxial Cables (2010)
Satellite Navigation: Garmin 126 GPS Marine Navigator (Cabin)
Color Navman Trackfish 6500 GPS / Chart plotter Fish finder
(Cockpit Navigation Panel Flush Mount), Great Lakes Charts
Cd /Radio: AM/FM Stereo, 2 Cabin Flush-mounted Speakers
2 Cockpit Waterproof Speakers

Inverter: Marine, Electronics 1000 Watts, 110 V/220 V
Battery Charger: Dolphin 12 V/20 A
Meters: Analog Voltage Meter, Analog Ampere Meter
Battery Switches: 3 pcs

ENGINE

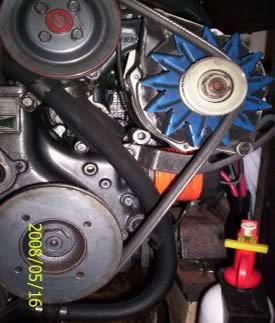

Make: Yanmar type 4JH4E, Diesel
4-stroke, vertical, water cooled
40.5 kW (55 hp) / 3000 rpm
Year: 2005
Gear Box: Yanmar
Engine Control Panel: Yanmar Digital B-type
Fuel Capacity: (36 US gals.) 135 L
Fuel Tank: PVC (alcohol-cleaned 2010)
Fuel Lines, Filter: Racor 500MA Diesel Fuel Filter / Water Separator
(alcohol-cleaned 2010)
Fuel Conditioner: Algae-X (alcohol-cleaned 2010)
Fixed Propeller: (Shaft Drive)
Cutlass Bearing: Beneteau Part
Stuffing Box: Volvo Drip-less, Rubber
Anodes / Zincs: Propeller, Shaft
